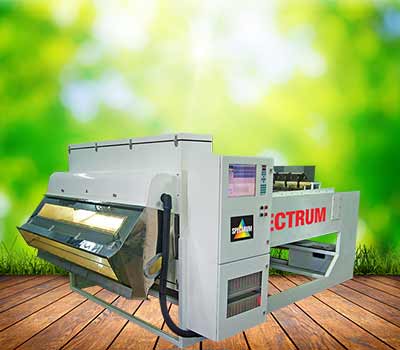

Belt Sorter Machine

Belt Sorter Machine

The Belt type CCD Camera Sorter

( Belt Sorter Machine )

  • Brand: Spectrum
  • Voltage: 110/230 V A.C. Three Phase
  • Power: 2-5 Kw
  • Frequency: 50/60 Hz
  • Air Quality: Free of Oil,water and dirt
  • Consumption: 15-50 Ltr/sec(32-110cfm) approximate,depending upon the rejection rate.
  • Pressure: 7 Bar(100 PSI)


SBS-4001 MAXIMA Full Colour Belt type CCD Camera Sorters

What is it ?

SPECTRUM SBS-4001 MAXIMA Belt sorters use horizontal transfer belts to transport the product to be sorted to the viewing area for inspection and for sorting out the defective product.

The SBS-4001 MAXIMA Belt Color Sorter is an ideal machine for sorting brittle material that may break up on impact due to the free in Channel type or Chute feed machines. They are ideal for sorting Nuts such as Almonds, Roasted & Blanched Peanuts, Pecans, Cashewnuts etc.

The use of Horizontal transfer belts help to sort out irregular shaped product as well as sticky product such as Raisins and Fresh Vegetables such as peeled Garlic, diced carrots, peas, beans etc. that may not flow freely down the slides in the Channel sorters.

How it works ?

The SBS-4001 MAXIMA use advanced 5400 pixel x 3, Tri-linear RGB, CCD Line Scan Cameras to scan the product in the Red, Green and Blue region of light in order to identify even subtle defects in product quality.

The machines have LED Solid State Lighting that provides High Intensity long life stable lightning.

Large Format Lenses with digital automatic LED backlights are employed to ensure highest quality imaging of the product, that is also displayed on a 15” Colour LED TFT screen, for online viewing and monitoring of the product. The resultant data is compared with pre-set parameters, to reject the defective product using ultra-fast, long life, custom designed pneumatic ejectors.

The machines have the ability to detect and reject over 200,000 objects/minute with a defect size of even 0.025mm sq. They are fully computer controlled with automatic calibration and self-check procedures.

Instant change over from one product sort to another is possible, using pre-stored sorting Algorithms.


  • Horizontal transfer Belt system to feed the product
  • Ideal for sorting Brittle product with minimal or negligible breakage.
  • Used for sorting non free flowing and sticky products that do not slide down chutes or slides.
  • High Resolution 5400 pixels 3, tri-linear Full Colour CCD Camera.
  • Trichromatic or Penta-chromatic LED Solid state high intensity long life stable lightning.
  • On-line live visual display of product being sorted on 15” Colour LED TFT screen.
  • Ultra-fast long life pneumatic ejectors with response time of 1ms and life of up to 5 billion cycles.
  • Automatic cleaning of viewing area by wiper system.
  • Automatic online calibration with self-check procedures.
  • Fully computer controlled.



  • Optical sorting helps improve product quality,
  • Maximize throughput
  • Increased yields


Application Industries

  • Sorting of nuts such as Almonds, Walnuts, Macademia nuts, Pistachios, Cashewnuts, Pine nuts etc.
  • Roasted and Blanched Peanut Sorting
  • Cashew Processing
  • Raisin sorting
  • Mineral sorting

Air Requirement


7 Bar (100 PSI)


15-50 Ltr/Sec(32-110 cfm) Approximate, Depending upon the rejection rate

Air Quality

Free Of Oil, Water & Dirt

Electrical Requirement


110/230 V.A.C. Three Phase


50/60 Hz


5-10 Kw
