Vibro Cleaner

Vibro Cleaner

The heavy duty cleaning machine

  • Brand: Spectrum
  • Capacity: 1-1.5 ton/hr
  • Model: VC-90
  • Power: 1.5 Hp
  • Net Weight: 400 Kg
  • Gross Weight: 495 Kg
  • Shipping Volume: 2.5 m3



The heavy duty Cleaning machine

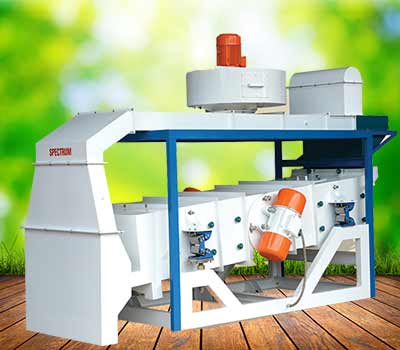

Spectrum Vibro-Cleaners  are used for removing large impurities such as stick, buck and leaves as well as small impurities such as fine dirt and sand from good  product in seed cleaning  and processing  plants for cleaning of all kinds of crops such as grain, seeds, corn, wheat, rye, soybeans, oats, millet and paddy etc..



The vibration of the deck containing the screens is provided by means of unbalanced vibratory motors mounted in the center of the machine. The vibrating deck is mounted on four flexible multi-element springs, thus ensuring that there is minimum or negligible transfer of vibration from the vibrating deck to the machine structure.



The machine has a highly efficient Aspiration System that includes Hopper aspiration for pre-screening aspiration as well as outlet aspiration for post screening aspiration.  The Aspiration system which is easily adjustable provides an Air Wash of the product in order to rid it of dust, loose husk and fibres.



Technical Features

  • Deck inclination, stroke and angle of throw are easily adjustable.
  • Automatic Screen cleaning by means of Rubber ball tray system.
  • Trouble free performance due to the use of unbalanced vibratory motors
  • Minimum maintenance with no lubrication required.
  • Easy access to screens for cleaning and changing by swing down type door.
